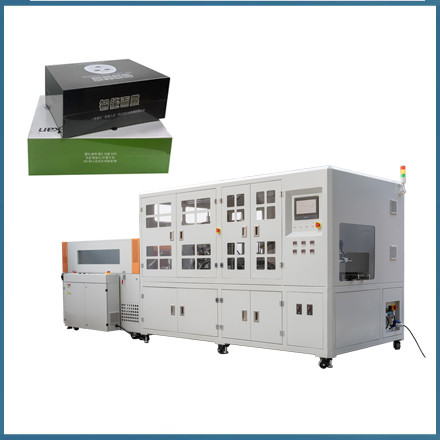

Product description：SG400 Box wrapping machine for high-end drip coffee box, pyramid tea bag box, cosmetic case!
SG400 Box wrapping machine will automatic wrap the box and shrink up.
Machine type: | Box Packaging Machine Series |
Machine model: | SG400 |
Machine?name: | Automatic Box Shrink Wrapping?Machine??? |
Control System: | PLC + Touch screen?? |
Packing speed: | ?600 - 720 box/hour per |
Packing?range: | Length?of Box /L: 100mm-400mm |
Width?of Box/W: 90mm-350mm | |
Height?of Box/H: 30mm-150mm | |
Note: The box?needs to meet?W+H ≦400mm | |
Packing material?& width: | POF?cross-linked shrink film |
Film broadband needs to meet≧L+H+50～80mm | |
Working height: | 950mm?height of outlet for Box |
Temperature of sealing: | 170～260°C |
Power supply: | Single phase, 220V, 50HZ, 20A |
Power: | 5.5KW?for wrapping machine / 16kw for Heat Shrinking?Machine |
Air supply and Air consumption: | 0.5-0.7Mpa; / Air consumption: 0.8m3/min |
Air compressor recommendation: | 10kw screw type Air Compressor machine + 1 cubic Gas Storage Tank |
Machine Material & Weight: | SUS304 Stainless steel for machine body & 2000KGS |
Machine dimension: | 2780*1620*1860mm (L*W*H)?for Wrapping Machine |
1800*1050*1310mm (L*W*H)?for Heat Shrinking?Machine |
