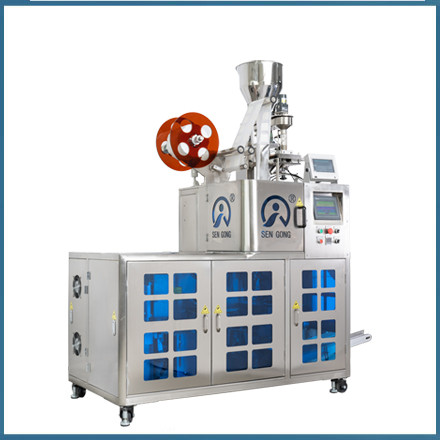

Product description：C89 Premade pouch drip coffee packing machine for filling coffee filter bag with ground coffee powder, into doypack bag with round corner!
This drip coffee packing machine is suitable for packaging of drip coffee bag with outer Premade Pouch, available with Coffee, tea leaves, herbal tea, health care tea, roots, and other small granule products.
Technical data | |
Type: | Drip Coffee Packing Machine Series |
Product model: | C89 |
Product name: | Ultrasonic Drip Coffee Inner and Outer Premade Pouch?Packing Machine |
?Bag type: | ?4?side sealing?Premade Pouch with / Without Round Corner |
?Outer Bag size:? | ?120*100mm (L*W) |
?Inner Bag size:? | ?L:50~75mm, W:50~90mm??(Filter paper width 180mm, Bag size: 90*74mm) |
Packing speed: | 30~40 bags/min ???????? |
Filling range: | 5~15g; accuracy:≦±0.1g/bag |
Measuring: | Volumetric cup |
Inner Packing material | Ultrasonic seal-able material: Drip coffee filter; Nylon filter mesh; PLA non-woven |
Outer packing material | Heat seal-able material: Kraft paper/aluminum coating; PE/aluminum coating; PE film |
Sealing method: | Ultrasonic sealing and cutting for inner bag; Outer Pouch by heat Sealing. |
Power: | Single phase, 220V, 50HZ, 3.7KW |
Air supply: | ≧0.6Mpa (Can be equipped with Air Compressor) |
Weight: | 800KG |
Dimension (L*W*H): | 2000*1000*1900mm |
